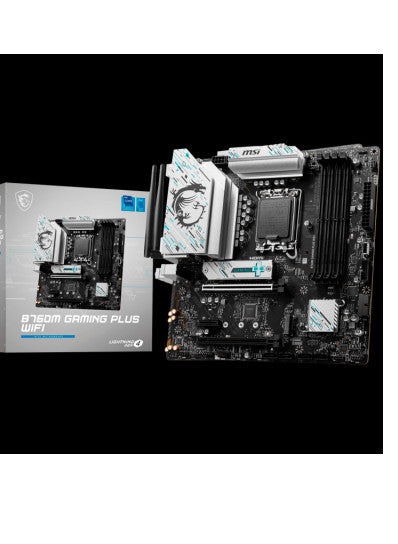

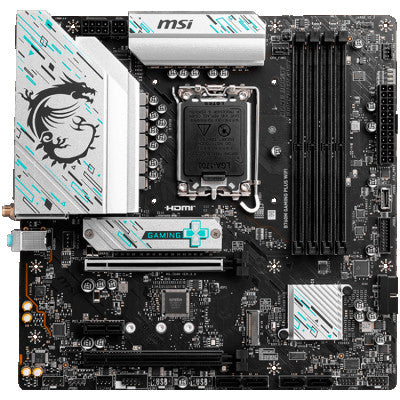

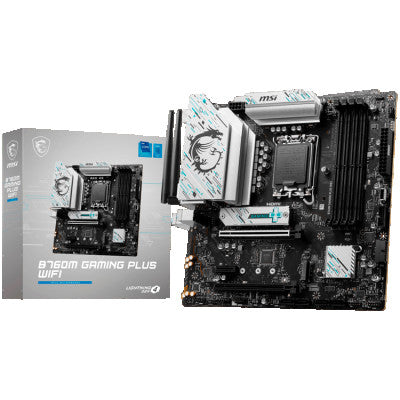

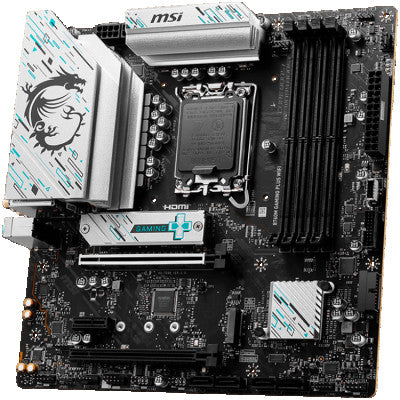

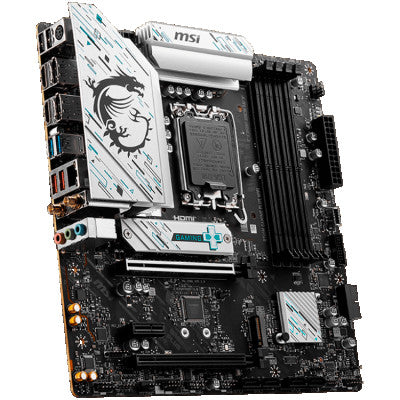

MSI Matična ploča B760M GAMING PLUS WIFI LGA1700 4x DDR5

MSI Motherboard B760M GAMING PLUS WIFI - Intel 14th/13th/12th Gen

Chipset Intel B760

Supports Central Processor Unit Intel 12th Gen Processors

Intel 13th Gen Processors

Intel 14th Gen Processors

CPU Socket Standard Socket 1700

CPU Maximum Quantity Supports 1

Main Board Desktop - Memory

Memory Type DDR5 SDRAM

Memory Form Factor DIMM 288-pin

Memory Speed 6800MHz(PC5-54400)

Maximum Installable System Memory Storage Capacity 256 GB

Memory Slot Total Quantity 4

Provides Error Checking Method non-ECC

Memory Features Two DDR Channels

Unbuffered

Dual Rank

Single Rank

XMP

Controller

Integrated Storage Controller:

PCI Express 4.0 x4 (1 x M.2 (Key M))

Storage Controller:

Supports: Level 0, Level 1, Level 10, Level 5

SATA III-600 (4)

Wi-Fi Controller:

1 x M.2 (Key E)

Storage Controller:

PCIe 4.0 x4/SATA (1 x M.2 (Key M))

Main Board Desktop - Audio Output

Audio Integrated yes

Device Location Integrated

Audio Chipset Realtek ALC897

Audio Output Mode 7.1 Channel Surround

Compliant Audio Standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN Integrated yes

LAN Chipset Realtek Dragon RTL8125BG

Wi-Fi IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n Wi-Fi 4

IEEE 802.11ac Wi-Fi 5

IEEE 802.11ax Wi-Fi 6E

Bluetooth Bluetooth 5.3

Data Link Protocol Supports 2.5 Gbps

Slot Provided

PCI Express x16 5

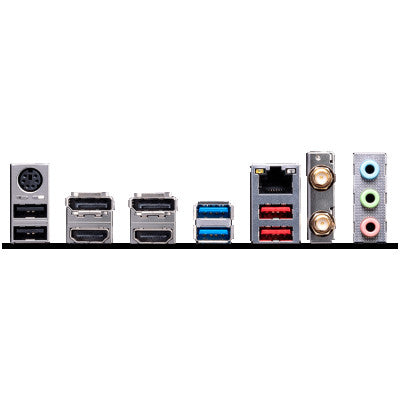

Interface Provided

USB 2.0 4 (USB 2.0 (type A))

Antenna 2

USB 3.2 Gen 2 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C))

DisplayPort 1

HDMI 1 (HDMI (Type A))

LAN 1 (RJ-45)

Audio Interface 5 (3.5-mm minijack)

S/PDIF-out Optical 1 (TOSLINK)

PS/2 1

Main Board Desktop - Software

Supported Operating System Microsoft Windows 10 64-bit

Microsoft Windows 11 64-bit

Miscellaneous

Cable Included SATA Cable

Included Accessories I/O Shield

Quick Start Guide

WiFi antenna

Screw

Main Board Desktop - Dimensions&Weight

Form Factor ATX

Height (mm) 304.8 mm

Width (mm) 243.84 mm

Cijena 305,90KM

Garancija 3GOD

Artikal šaljemo unutar granica BiH (9,90 KM)

ili isti možete preuzeti u našoj poslovnici Tržni Centar Wisa (1. Sprat)



062 236 628
