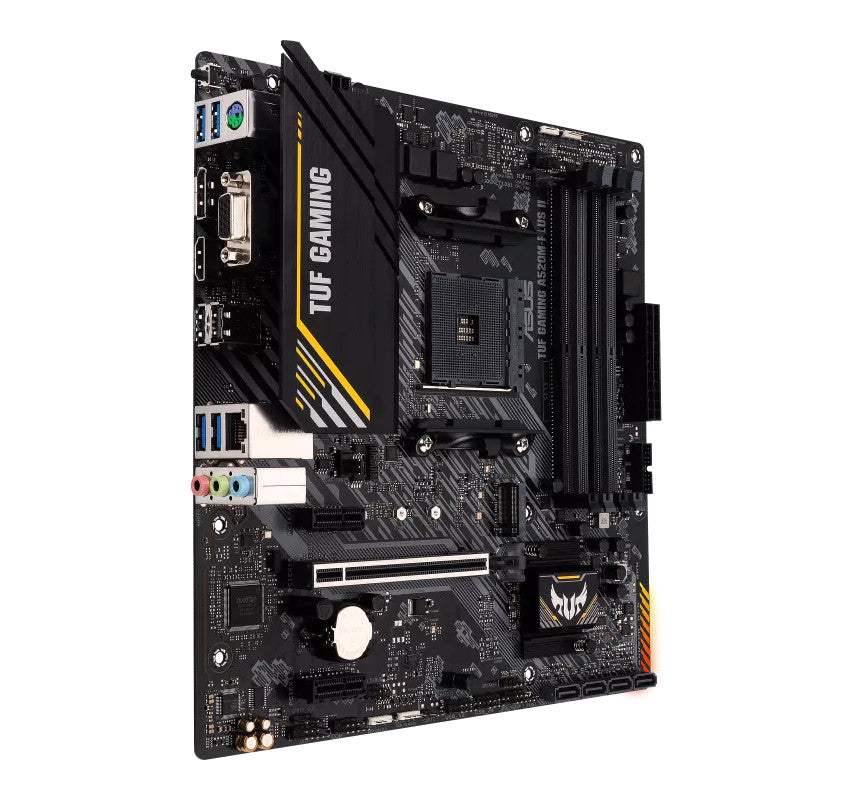

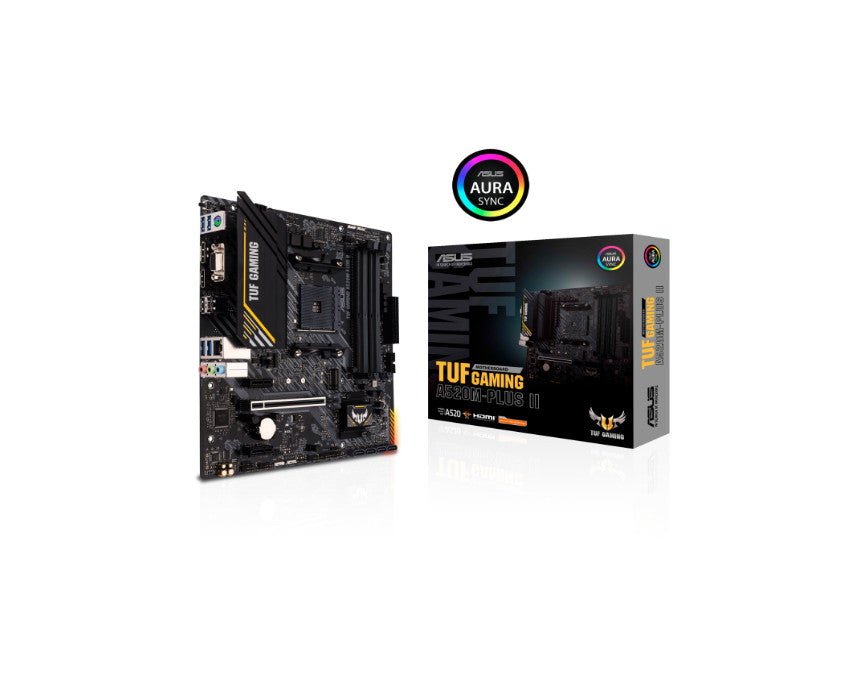

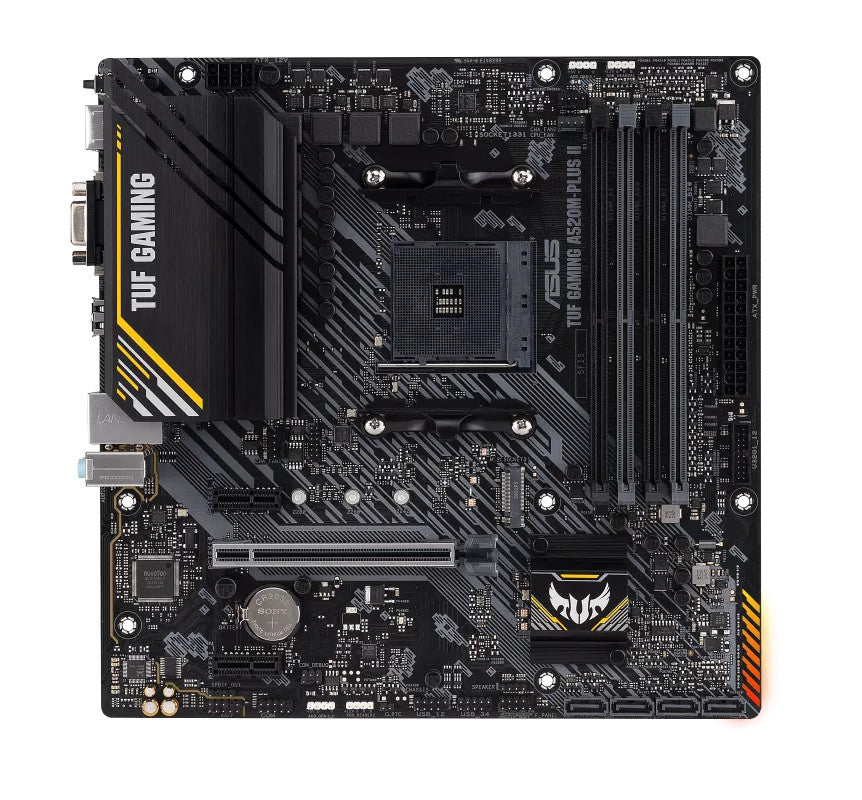

Maticna ploca ASUS TUF A520M-PLUS II AM4 4XDDR4 m.2

ASUS TUF GAMING A520M-PLUS II AM4 mATX MB - AMD A520 4xDIMM DDR4 1xM.2 4xSATA PCIe 3.0 1Gb Ethernet 1xD-SUB 1xDisplayPort 1xHDMI and AURA Addressable Gen 2 headers

90MB17G0-M0EAY0

Chipset AMD A520

Supports Central Processor Unit AMD Ryzen Series

CPU Socket Standard Socket AM4

CPU Maximum Quantity Supports 1

Main Board Desktop - Memory

Memory Type DDR4 SDRAM

Memory Form Factor DIMM 288-pin

Memory Speed 2133MHz(PC4-17000)

2400MHz(PC4-19200)

2666MHz(PC4-21300)

2800MHz(PC4-22400)

3000MHz(PC4-24000)

3200MHz(PC4-25600)

Maximum Installable System Memory Storage Capacity 128 GB

Memory Slot Total Quantity 4

Provides Error Checking Method ECC

Memory Features Two DDR Channels

Unbuffered

Controller

Integrated Storage Controller:

PCIe 3.0 x4/SATA (1 x M.2 (Key M))

Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (4)

Main Board Desktop - Audio Output

Audio Integrated yes

Device Location Integrated

Audio Chipset Realtek ALC887/ALC897

Audio Data Width 24-bit

Audio Output Mode 7.1 Channel Surround

Compliant Audio Standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN Integrated yes

Data Link Protocol Supports Gigabit Ethernet/Fast Ethernet/Ethernet

Slot Provided

PCI Express 3.0 x16 1

PCI Express 3.0 x1 2

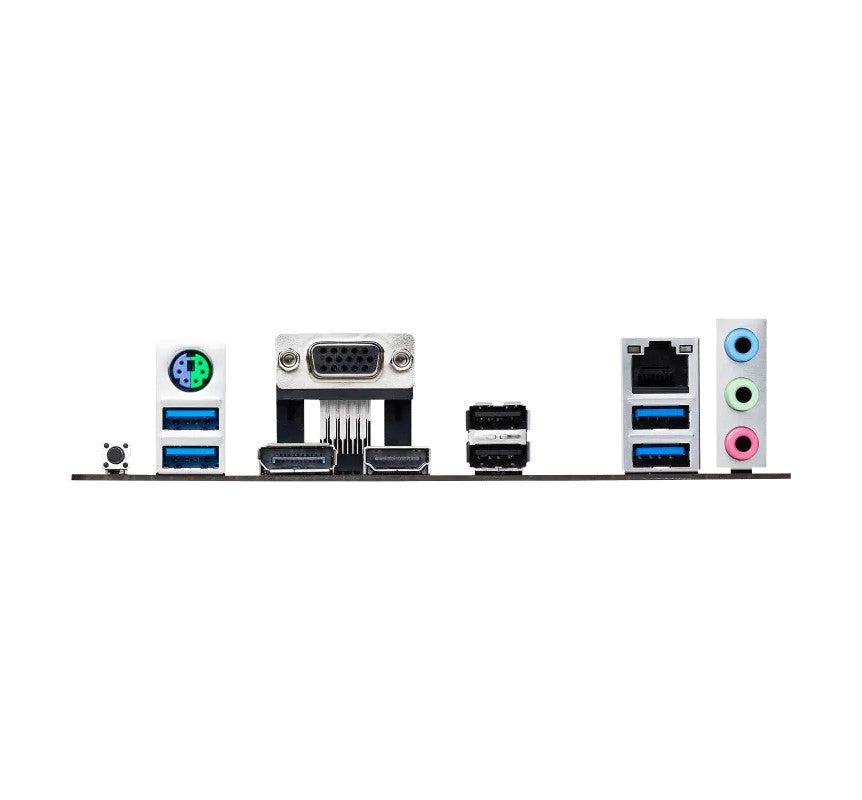

Interface Provided

DisplayPort 1

VGA 1 (15-pin D-sub)

HDMI 1 (HDMI (Type A))

LAN 1 (RJ-45)

PS/2 1

Audio Interface 3 (3.5-mm minijack)

USB 3.2 Gen 1 4 (USB 3.2 (type A))

USB 2.0 2 (USB 2.0 (type A))

Main Board Desktop - Mainboard Features

BIOS Type AMI

BIOS Features ASUS CrashFree BIOS 3

UEFI

PXE boot

128 Mb Flash ROM

ASUS EZ Flash 3

Wake up/Sleep Wake on LAN

Power Connectors Type 24+8 pin

Main Board Desktop - Software

Supported Operating System Microsoft Windows 10 64-bit

Miscellaneous

Cable Included 2 x SATA 6Gb/s Cables

Included Accessories I/O Shield

User Guide

Screws

DVD

Sticker

Main Board Desktop - Dimensions&Weight

Form Factor Micro ATX

Height (mm) 244 mm

Width (mm) 244 mm

Cijena 155,90 KM

Garancija 36 MJ

Artikal šaljemo unutar granica BiH (9,90 KM)

ili isti možete preuzeti u našoj poslovnici Tržni Centar Wisa (1. Sprat)



062 236 628
